EXOR MicroEdge Edge Controller and IoT Gateway

Description

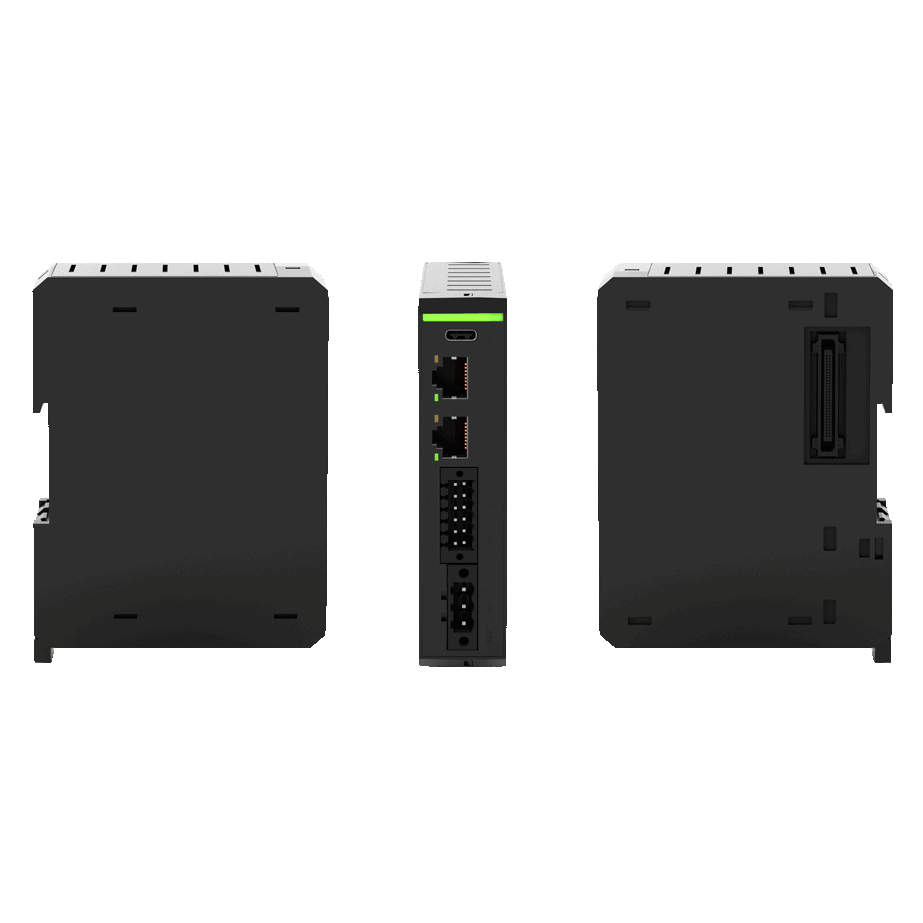

MicroEdge Basic is compact and lightweight device designed as an Edge Controller – IoT Gateway. It is a simple device for building efficient and data-intensive cloud edge solutions for IoT.
Through use as a gateway, a powerful HMI, the MicroEdge Basic facilitates data intensive and complex IIoT applications to be enabled.

MicroEdge IoT Plus is a compact and lightweight Edge Controller and IoT Gateway , designed for efficient edge cloud solutions .
It features a powerful 64-bit processor and offers optional CODESYS PLC control and network stack for I/O expansion, making it suitable for demanding industrial applications.

PRODUCT CODE

Version	Basic, Plus
CPU	32-bit RISC Single Core - 528 MHz, 64-bit RISC quad core - 1.6 GHz
Operating System	Linux Yocto
Flash	4 GB
RAM	512MB, 2 GB
FRAM	64KB
Real Time Clock	Yes
RTC Back-up	Supercapacitor
Ethernet port	2 (port 0 - 10/100, port 1 - 10/100)
USB port	1 (2.0 OTG, 500mA max., Type C)
Serial port	1 (RS-485, isolated)
CAN/CAN-FD port	1 (isolated)
Expansion port	Yes
Buzzer	Yes
Indicator Light	1 (RGB LED)
