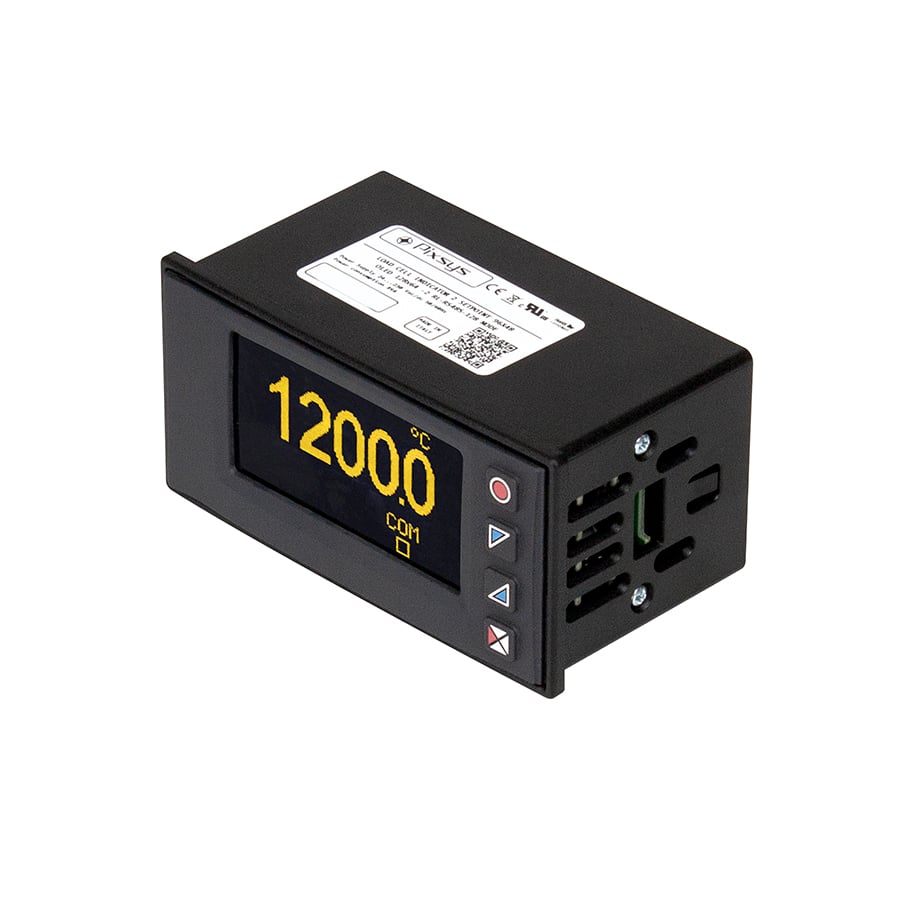

STR561 indicator with strain-gauge input is designed as a display for load cells and Melt pressure transducers (mV/V) and includes isolated power supply for the strain-gauge.
STR561 indicator with strain-gauge input is designed as a display for load cells and Melt pressure transducers (mV/V) and includes isolated power supply for the strain-gauge.
Conversion frequency programmable up to 1.2 KHz and resolution up to 24bit ensure high accuracy.
Different analog input calibration modes are selectable (sample weight, percent full-scale value, mV/V value).
Software features worth mentioning include multiple options for Tare management, Totalizer , Sum functions, process trend display with programmable time base or bar-graph with alarm/event thresholds.
An auto-configuration mode has also been implemented for some Dynisco Melt transducers, simplifying the settings required of the user.
Connectivity is provided by RS485 standard with Modbus RTU/Slave protocol.
STR561 interface is also quickly configurable via NFC with MyPixsys APP, without the need to power up the instrument or via multi-language text menus from the frontal keypad
SPECIFICATIONS
Power supply
24..230 V AC / DC ±15% 50/60 Hz - galvanic isolation 2, 5KV
Power consumption
8 Watt/Va
Display

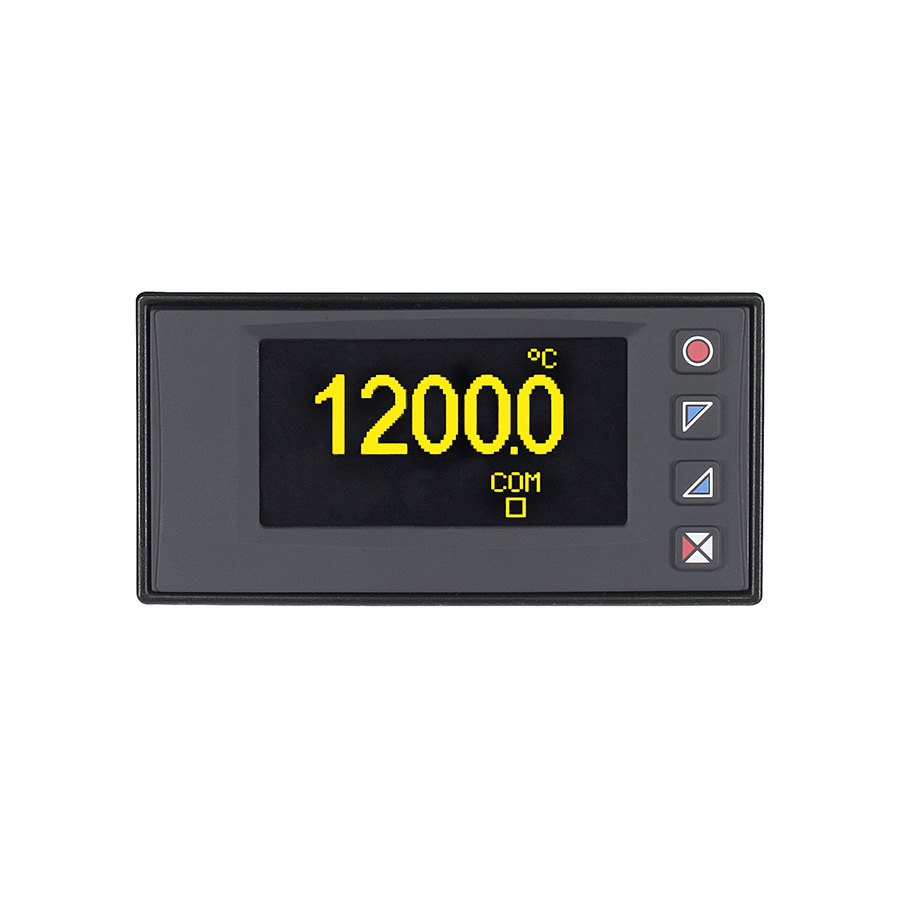

2.42" monochrome OLED graphic display (yellow), 128 x 64
Analogue input for load cells
1 x 23 bit (8000000 points). Max 2 350Ω parallel load-cells, or max 4 720Ω load-cells. - Linearity < 0.01% sul F.S. - Thermal drift < 0.001% sul F.S./°C - Max input signal 39 mV - Max load-cell sensibility 7mV/V Potentiometer: min. 200Ω (10000 points) with customizable linear input (max 16 steps)
Sampling time
Configurable speed conversion from 1 Hz (8000000 points) to 1200 Hz (30000 points)
STR561 Strain-Gauge Indicator / Panel meter
STR561 indicator with strain-gauge input is designed as a display for load cells and Melt pressure transducers (mV/V) and includes isolated power supply for the strain-gauge.
Description
STR561 indicator with strain-gauge input is designed as a display for load cells and Melt pressure transducers (mV/V) and includes isolated power supply for the strain-gauge.
Conversion frequency programmable up to 1.2 KHz and resolution up to 24bit ensure high accuracy.
Different analog input calibration modes are selectable (sample weight, percent full-scale value, mV/V value).
Software features worth mentioning include multiple options for Tare management, Totalizer , Sum functions, process trend display with programmable time base or bar-graph with alarm/event thresholds.
An auto-configuration mode has also been implemented for some Dynisco Melt transducers, simplifying the settings required of the user.
Connectivity is provided by RS485 standard with Modbus RTU/Slave protocol.
STR561 interface is also quickly configurable via NFC with MyPixsys APP, without the need to power up the instrument or via multi-language text menus from the frontal keypad
Questions & Answers
Robot verification failed, please try again.
This Product have no Question..!
Related Products

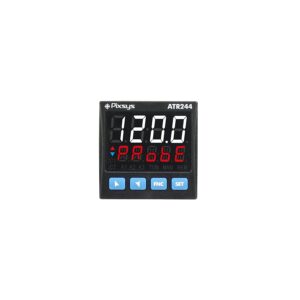

ATR244 PID Controller 48x48mm (1/16DIN)
