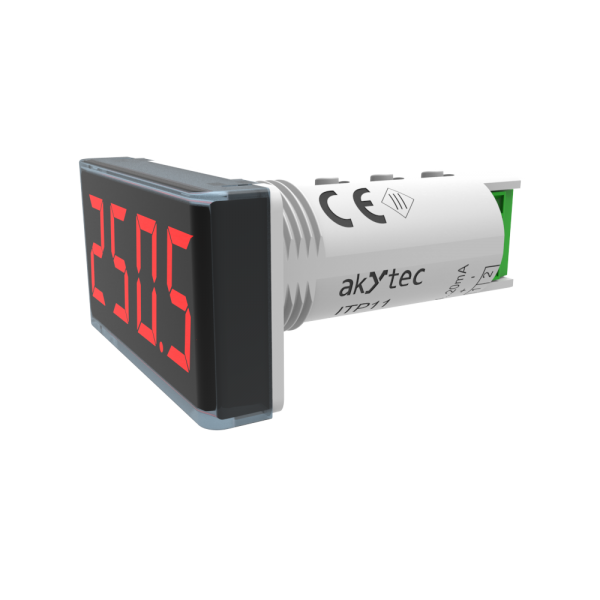

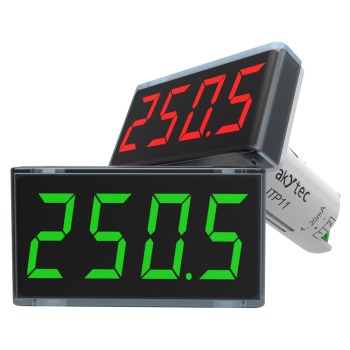

ITP11 Loop-Powered Indicator 4…20mA

Description

The ITP11 is designed for monitoring industrial processes. It connects directly to any transmitter with a 4–20 mA output and requires no auxiliary power, operating directly from the current loop. The ITP11 features a compact, standardized design that fits into a standard 22.5 mm borehole for signal lamps, allowing you to install and connect indicators without any extra cables.

Main features of ITP11:
4–20 mA Measurement: Operates without requiring auxiliary power.
Signal scaling
Alarm Function: Features blinking alerts when setpoints are exceeded.
Adjustable decimal point position
Access protection
Standardized Design: Fits into a standard 22.5 mm borehole for signal lamps.

Safe loop powered indicator 4-20 mA for universal application

The ITP11 Process Display 4-20 mA is a universal process display for monitoring industrial processes. This digital process meter is ideally suited for quick and convenient developing of visualization systems for various applications, e.g., water supply or thermal processing. This digital display can serve both as a useful additional display of the measured values on site and as a part of a sophisticated visualization.

Compact design and high IP rating

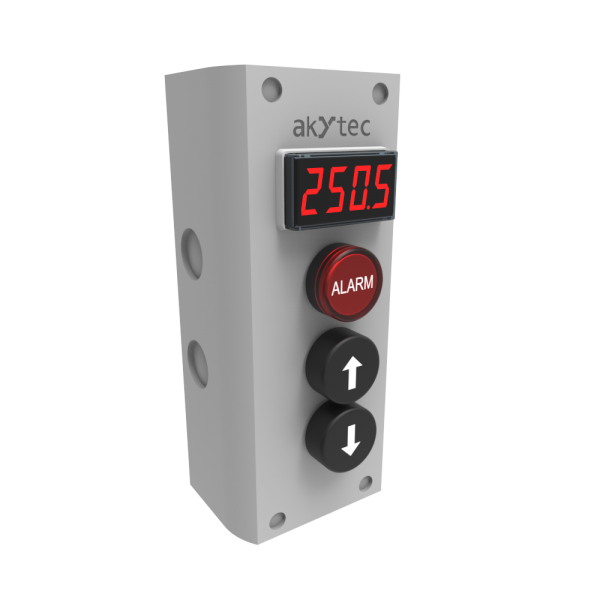

Thanks to standardized cylindrical form and minimal dimensions, this 4-20 mA compact display fits into a standard 22.5 mm mounting hole for indicator lights or push buttons. The digital displays can be installed in a space-saving, quick and convenient way allowing the integration of a large number of these current loop indicators in control cabinets or panels.

The 4-20 mA digital display ITP11 ensures excellent legibility in various lighting conditions, from wide angles, and considerable distances even at low current.

4-20 mA signal in digital display

The 4-20 mA process display ITP11 is designed to accept any sensor or transmitter with a 4-20 mA output. The current loop indicator ITP11 does not require any auxiliary power supply; the device is supplied directly from the 4-20 mA current loop.

Functions and features:

– Signal scaling
– Adjustable decimal point position
– Display range of -999…+9999
– Square root function (for special transmitters)
– Digital filter
– Alarm function (blinking when exceeding the setpoints)
– Error indication when exceeding the measuring limits
– Access protection
