ITP15 LED Bar Graph Display

Description

The ITP15 Bar Graph Display is a compact panel-mount process indicator designed to visualize an analog input signal ranging from 0 to 100% with 10 bars, each representing 10%. The input signal can be either a linear voltage signal of 0(2)-10 V or a current signal of 0(4)-20 mA. The ITP15’s compact and standardized design fits into a standard 22.5 mm borehole for signal lamps, allowing for quick and simle installation.

Main features of ITP15

Bar graph indication of the measured value.
Display range 0…100%.
10 two-color bars (green/red) 10% each.
Configurable analog input (0-5 mA, 0(4)-20 mA, 0(2)-10 V).
ON/OFF control with an NPN-transistor output.
2 modes of blinking (fast/slow).
Alarm settings.
Standardized Design: Fits into a standard 22.5 mm borehole for signal lamps.

The ITP15 Bar Graph Display is a compact process indicator that is intended to visualize an analog input signal in the range from 0 to 100% with 10 bars 10% each. The input signal can be either a linear voltage signal of 0(2)-10 V or a current signal of 0(4)-20 mA.

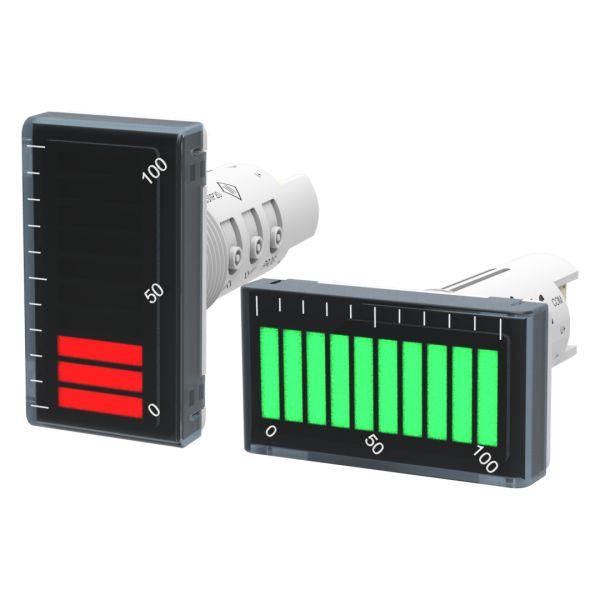

Due to cylindrical form of the mounting part of the enclosure, the device can be positioned either vertically or horizontally without changing the mounting cutout. This bar graph indicator fits into a standard cutout of Ø22.5 mm. The cutouts of this diameter are commonly used for mounting standard signal lamps or push buttons at control cabinets or panels.

Along with indication, a simple on-off control can be implemented with the NPN transistor output of this bar graph panel meter. This output can control a load of up to 200 mA, 42 VDC.

Functions and features:

– Bar graph indication of the measured value
– Display range 0…100%
– 10 two-color bars (green/red) 10% each
– Configurable analog input (0-5 mA, 0(4)-20 mA, 0(2)-10 V)
– ON/OFF control with an NPN-transistor output
– 2 modes of blinking (fast/slow)
– Alarm settings
