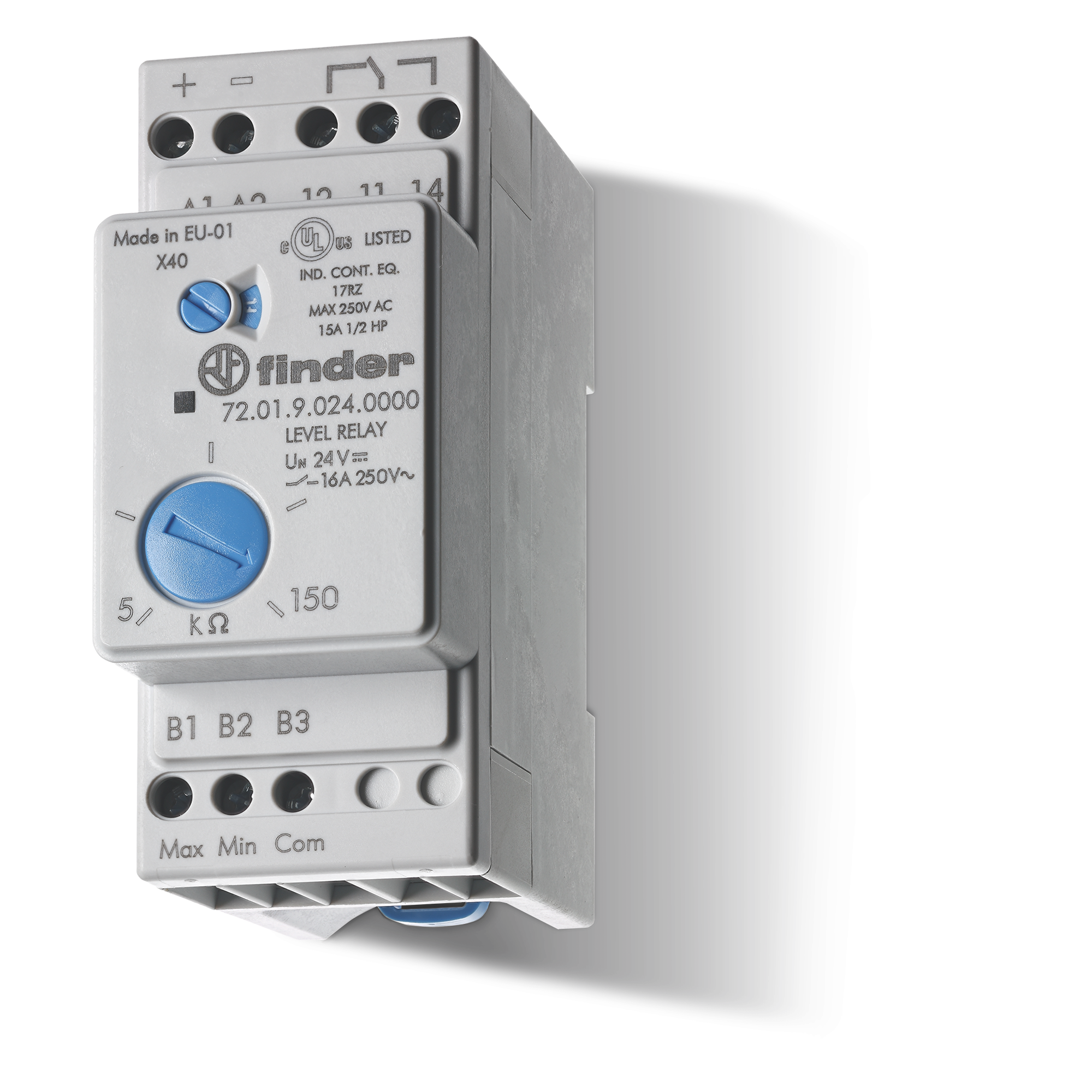

Finder Type 72.01 LEVEL CONTROL RELAY, UP/DOWN, 1CO16A@250VAC

Description

Level control relays, Sensitivity range adjustable (5…150) kΩ, 1 CO (SPDT), 16 A, AC supply version, nominal voltage 240 V, operating from 184 to 253 V, rated power 2.5 VA, AgNi, Options: Max. 150 kΩ, ambient temperature from -20 to +60 °C

Available variations:
– Level control relay for conductive liquids with adjustable sensitivity (5 … 150) kΩ, selectable intervention delay (0.5 s or 7 s). Filling or emptying function switch selectable. This control relay is also available for 400 V supply. The adjustable sensitivity (5… 450) kΩ version can also be equipped with a contact for low loads down to 5 V – 1 mA.
– Level control relay for conductive liquids with adjustable sensitivity (5 … 150) kΩ, selectable intervention delay (0.5 s or 7 s). Filling or emptying function switch selectable. This control relay is also available for 400 V supply. The adjustable sensitivity (5… 450) kΩ version can also be equipped with a contact for low loads down to 5 V – 1 mA.
– Level control relay for conductive liquids with adjustable sensitivity (5 … 150) kΩ, selectable intervention delay (0.5 s or 7 s). Filling or emptying function switch selectable. This control relay is also available for 400 V supply. The adjustable sensitivity (5… 450) kΩ version can also be equipped with a contact for low loads down to 5 V – 1 mA.

Available models:

• 72.01-024-AC: LEVEL CONTROL RELAY, UP/DOWN, 1CO16A@250VAC, 24VAC (72.01.8.024.0000)
• 72.01-024-DC: LEVEL CONTROL RELAY, UP/DOWN, 1CO16A@250VAC, 24VDC (72.01.9.024.0000)
• 72.01-240-AC: LEVEL CONTROL RELAY, UP/DOWN, 1CO16A@250VAC, 230VAC (72.01.8.240.0000)
