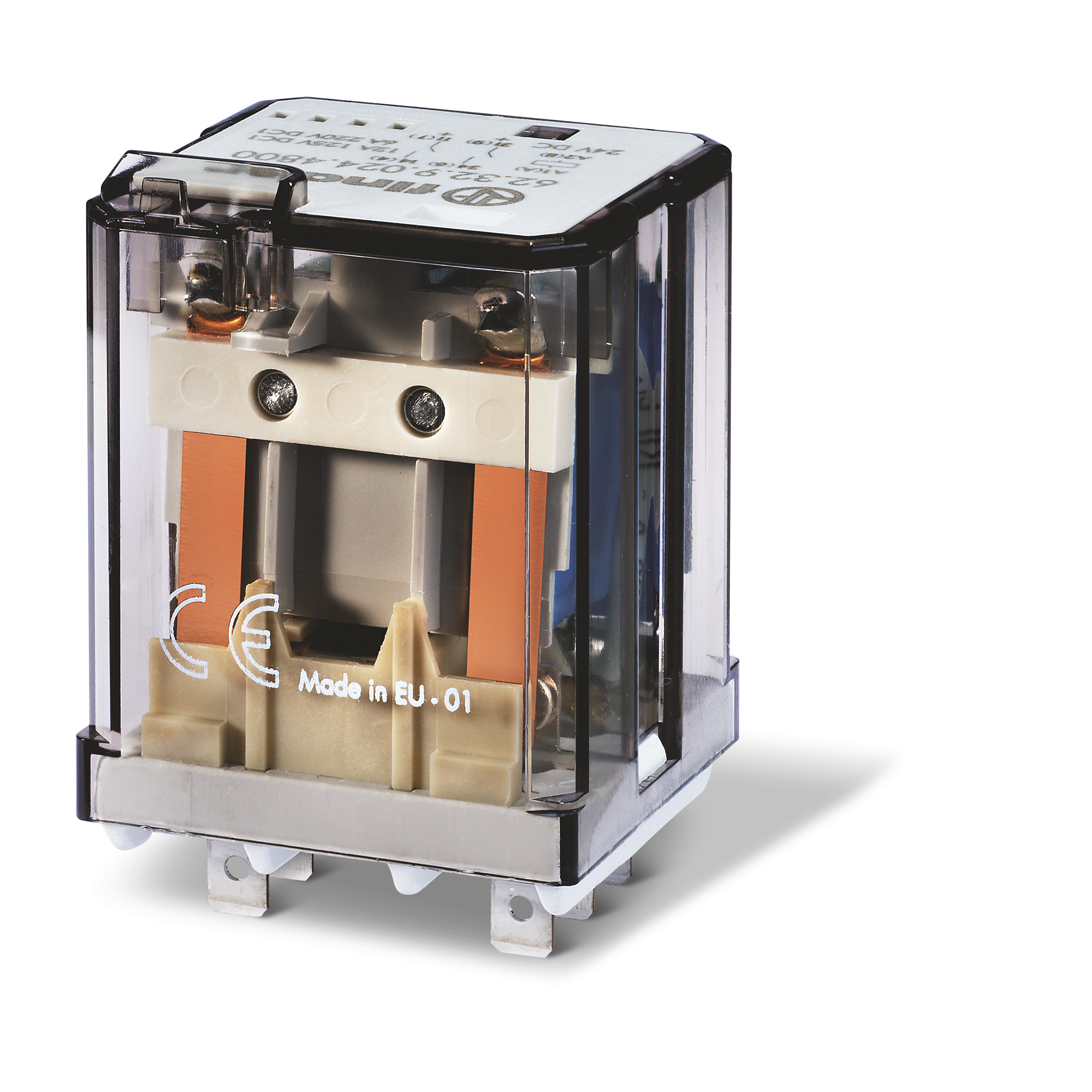

Finder Type 62.32 POWER RELAY PCB MOUNT, 2CO 16A@250VAC, SELV SEPARATION

Description

High Power relay, Plug-in socket version, 2 pole, NO with magnetic puff, 16 A, AgSnO2, DC coil, 125 V, operating from 106 to 138 V, rated power 1.3 W, resistance 12000 Ω, consumption 10.4 mA, holding voltage 75 V, must drop-out voltage 12.5 V, ambient temperature from -40 to +70 °C

Available variations:
– 16 A power relay, 2 CO or NO contacts (NO contact gap ≥ 3 mm), socket mounting (92 Series) or directly via Faston 187 (4.8 x 0.5 mm). Equipped with AC or DC coil, LED, lockable test button and standard mechanical indicator. Reinforced insulation between coil and contacts according to EN 60335-1; clearance/creepage separation 6/8 mm.
– 16 A power relay, 2 CO or NO contacts (NO contact gap ≥ 3 mm), socket mounting (92 Series) or directly via Faston 187 (4.8 x 0.5 mm). Equipped with AC or DC coil, LED, lockable test button and standard mechanical indicator. Reinforced insulation between coil and contacts according to EN 60335-1; clearance/creepage separation 6/8 mm.
– 16 A power relay, 2 CO or NO contacts (NO contact gap ≥ 3 mm), socket mounting (92 Series) or directly via Faston 187 (4.8 x 0.5 mm). Equipped with AC or DC coil, LED, lockable test button and standard mechanical indicator. Reinforced insulation between coil and contacts according to EN 60335-1; clearance/creepage separation 6/8 mm.
– 16 A power relay, 2 CO or NO contacts (NO contact gap ≥ 3 mm), socket mounting (92 Series) or directly via Faston 187 (4.8 x 0.5 mm). Equipped with AC or DC coil, LED, lockable test button and standard mechanical indicator. Reinforced insulation between coil and contacts according to EN 60335-1; clearance/creepage separation 6/8 mm.

Available models:

• 62.32-230AC-SELV: POWER RELAY PCB MOUNT, 2CO 16A@250VAC, SELV SEPARATION, 24VDC COIL
• 62.32-4800-125VDC: POWER RELAY, 2NO 16A@250VAC, MAG BLOWOUT, 125VDC COIL
• 62.32-4800-24VDC: POWER RELAY PCB MOUNT, 2CO 16A@250VAC, MAG BLOWOUT, 24VDC COIL
