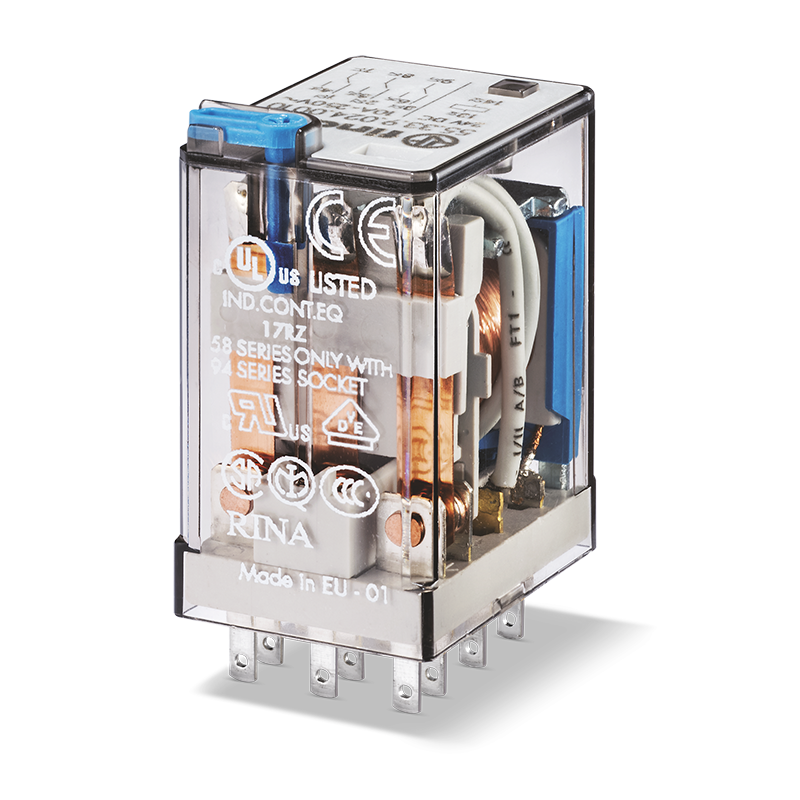

Finder Type 55.33 RELAY 12VDC, LED & TEST BUTTON, 3 CO 10A@250VAC

Description

Industrial relay, Plug-in socket version, 3 pole, CO (nPDT), 10 A, AgNi, DC coil, 12 V, operating from 9.6 to 13.2 V, rated power 1 W, resistance 140 Ω, consumption 86 mA, holding voltage 6 V, must drop-out voltage 1.2 V, option: Lockable test button + LED + diode, ambient temperature from -40 to +85 °C

Available variations:
– General purpose plug-in relay. 3 CO 10 A. For use with 94 Series sockets. With AC or DC coil. Lockable test button and standard mechanical indicator on 2- and 4-contact Types.
– General purpose plug-in relay. 3 CO 10 A. For use with 94 Series sockets. With AC or DC coil. Lockable test button and standard mechanical indicator on 2- and 4-contact Types.

Available models:

• 55.33-012-DC: RELAY 12VDC, LED & TEST BUTTON, 3 CO 10A@250VAC
• 55.33-110-DC: RELAY 110VDC, LED & TEST BUTTON, 3 CO 10A@250VA
• 55.33-230-AC: RELAY 230VAC, LED & TEST BUTTON, 3 CO 10A@250VA
