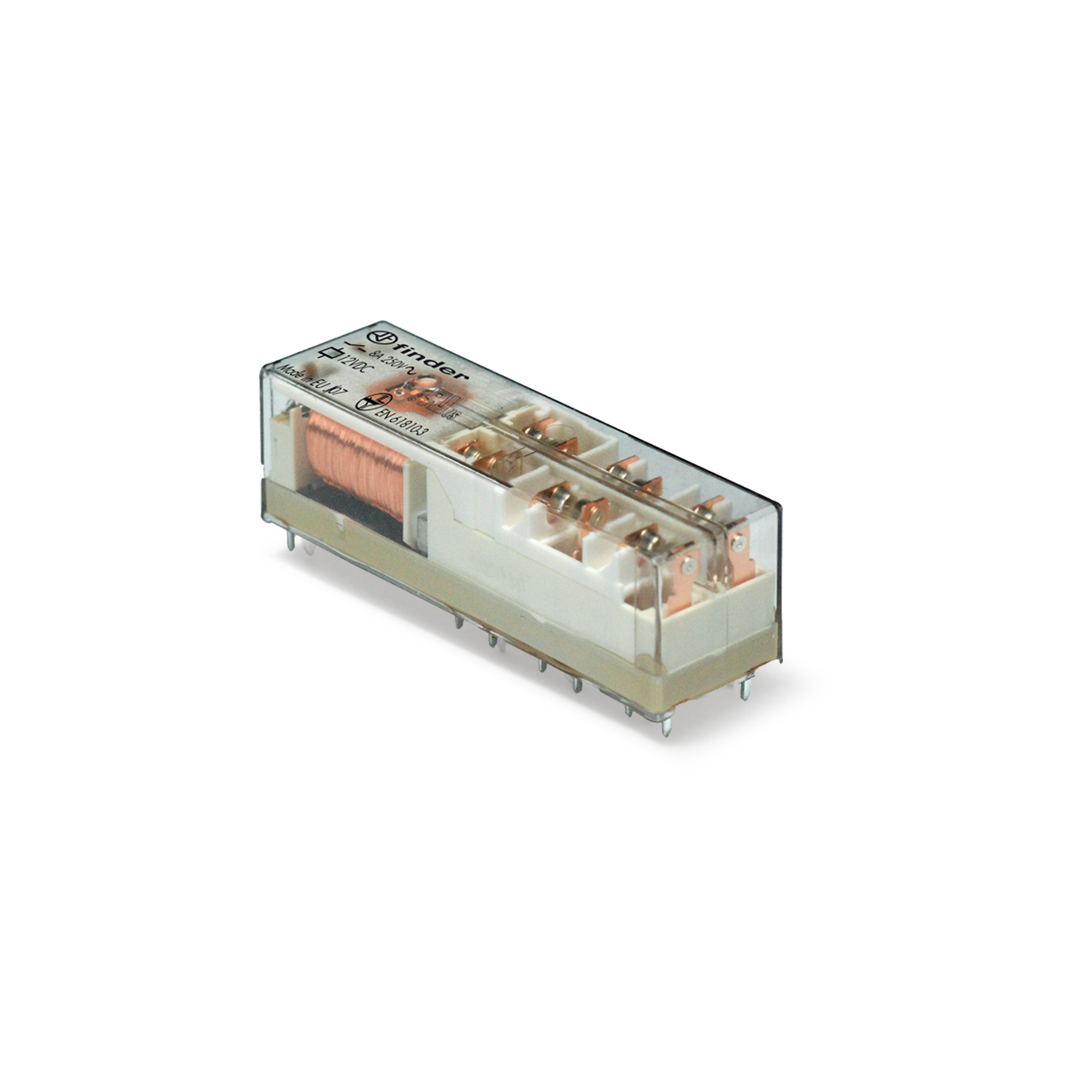

Finder Type 50.14 RELAY FORCE GUIDED CONTACTS, PCB MOUNT, 3 NO +1 NC 8A@250VAC

Description

Forcibly guided contacts relay, PCB mount, 4 pole, 3 NO, 8 A, AgSnO2, DC coil, 24 V, operating from 18 to 28.8 V, rated power 0.8 W, resistance 720 Ω, consumption 33.3 mA, holding voltage 9.6 V, must drop-out voltage 2.4 V, option: 1 NC, version: Wash tight (RT III), ambient temperature from -40 to +70 °C

Available variations:
– Relay for printed circuit with forcibly guided contacts according to EN 61810 (ex EN 50205) Type A. Relay for safety applications, 4 contacts, 8 A (2 NO + 2 NC) or (3 NO +1 NC). AgSnO2 contact material.
– Relay for printed circuit with forcibly guided contacts according to EN 61810 (ex EN 50205) Type A. Relay for safety applications, 4 contacts, 8 A (2 NO + 2 NC) or (3 NO +1 NC). AgSnO2 contact material.

Available models:

• 50.14.9.012.4310: RELAY FORCE GUIDED CONTACTS, PCB MOUNT, 3 NO +1 NC 8A@250VAC,12VDC
• 50.14.9.024.4310: RELAY FORCE GUIDED CONTACTS, PCB MOUNT, 3 NO +1 NC 8A@250VAC, 24VDC
