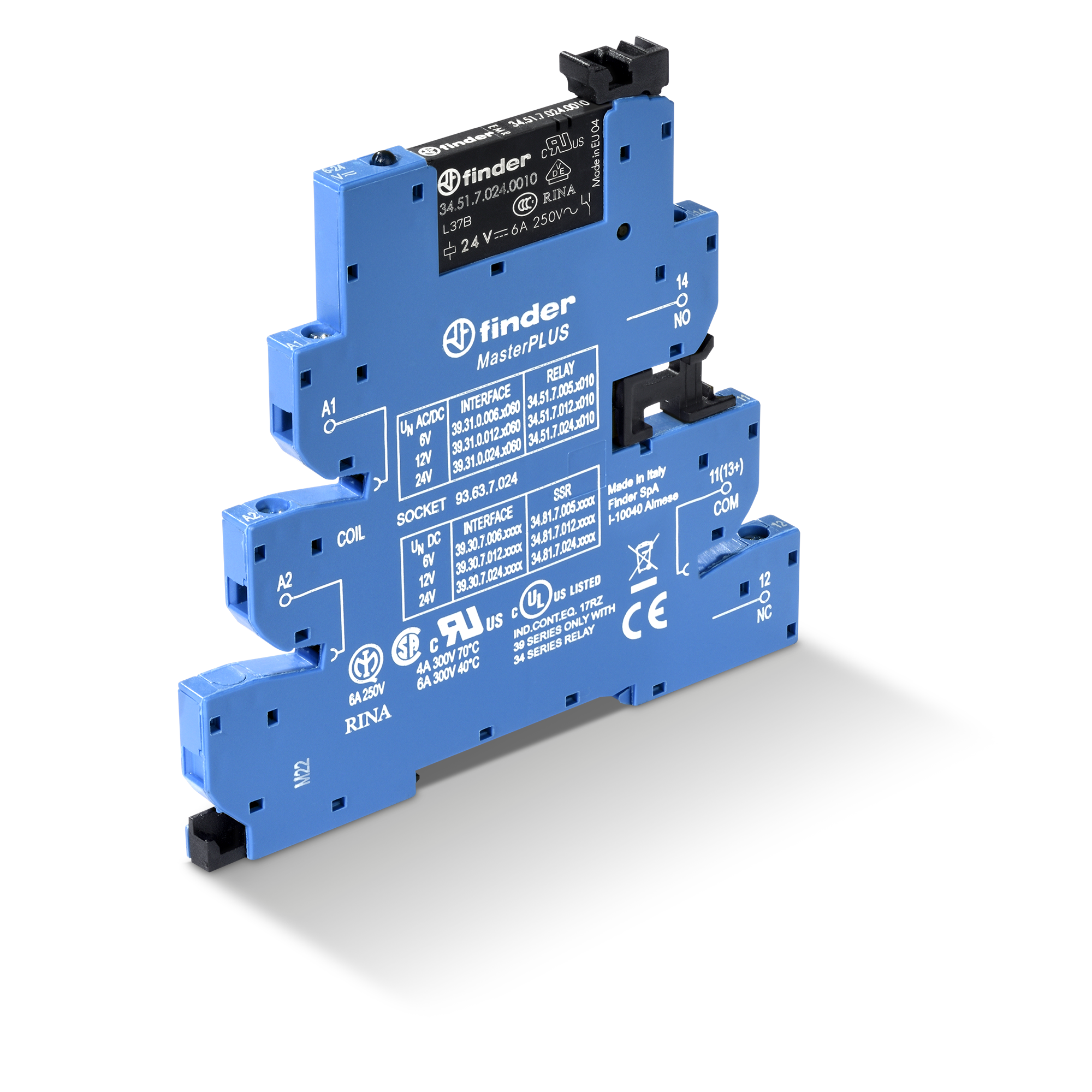

Finder Type 39.31 MasterPLUS RELAY,1CO 6A@250VAC, FUSABLE

Description

MasterPLUS – EMR – Relay interface modules, Screw terminal, fuse-protectable output, 1 pole, CO (nPDT), 6 A, AgNi, AC/DC coil, 12 V, operating from 9.6 to 13.2 V (AC)/(DC), rated power 0.2 VA (AC)/(DC), consumption 15 mA, holding voltage 7.2 V (AC)/(DC), must drop-out voltage 1.5 V (AC)/(DC), ambient temperature from -40 to +70 °C

Available variations:
– MasterPLUS EMR relay interface module with screw terminals, 1 CO – 6 A. Accepts fuse holder module allowing for protection of the output circuit – saving space. Width 6.2mm.
– MasterPLUS EMR relay interface module with screw terminals, 1 CO – 6 A. Accepts fuse holder module allowing for protection of the output circuit – saving space. Width 6.2mm.
– MasterPLUS EMR relay interface module with screw terminals, 1 CO – 6 A. Accepts fuse holder module allowing for protection of the output circuit – saving space. Width 6.2mm.
– MasterPLUS EMR relay interface module with screw terminals, 1 CO – 6 A. Accepts fuse holder module allowing for protection of the output circuit – saving space. Width 6.2mm.

Available models:

• 39.31-006-AC/DC: MasterPLUS RELAY,1CO 6A@250VAC, FUSABLE, 6VAC/DC
• 39.31-012-AC/DC: MasterPLUS RELAY,1CO 6A@250VAC, FUSABLE,12VAC/DC
• 39.31-125-AC/DC: MasterPLUS RELAY,1CO 6A@250VAC, FUSABLE, 110-125VAC/DC FUSABLE
• 39.31-230-AC: MasterPLUS RELAY,1CO 6A@250VAC, FUSABLE, 230VAC
• 39.31-24-240AC/DC: MasterPLUS RELAY,1CO 6A@250VAC, FUSABLE, 24-240VAC/DC
