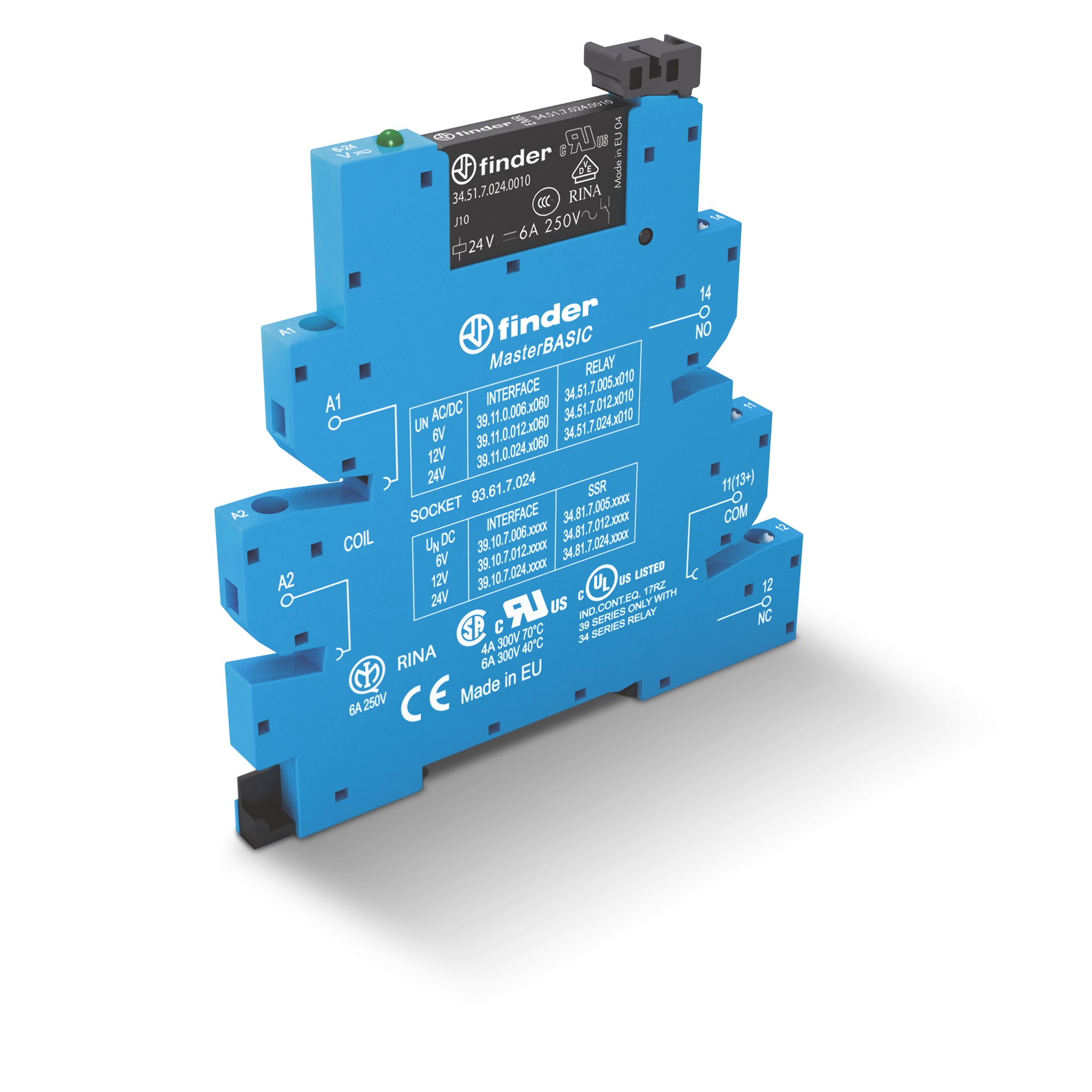

Finder Type 39.11 MasterBASIC INTERFACE RELAY, 1CO 6A@250VAC

Description

MasterBASIC – Relay interface modules, Screw terminal, 1 pole, CO (nPDT), 6 A, AgNi, AC/DC coil, 24 V, operating from 19.2 to 26.4 V (AC)/(DC), rated power 0.25 VA (AC)/(DC), consumption 11 mA, holding voltage 14.4 V (AC)/(DC), must drop-out voltage 2.4 V (AC)/(DC), ambient temperature from -40 to +70 °C

Available variations:
– MasterBASIC SSR is a Relay Interface Module – SSR with 1 contact , width 6.2 mm and screw terminals. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC and electronic systems.
– MasterBASIC SSR is a Relay Interface Module – SSR with 1 contact , width 6.2 mm and screw terminals. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC and electronic systems.

Available models:

• 39.11-012-AC/DC: MasterBASIC INTERFACE RELAY, 1CO 6A@250VAC, 12VAC/DC
• 39.11-024-AC/DC: MasterBASIC INTERFACE RELAY, 1CO 6A@250VAC, 24VAC/DC
