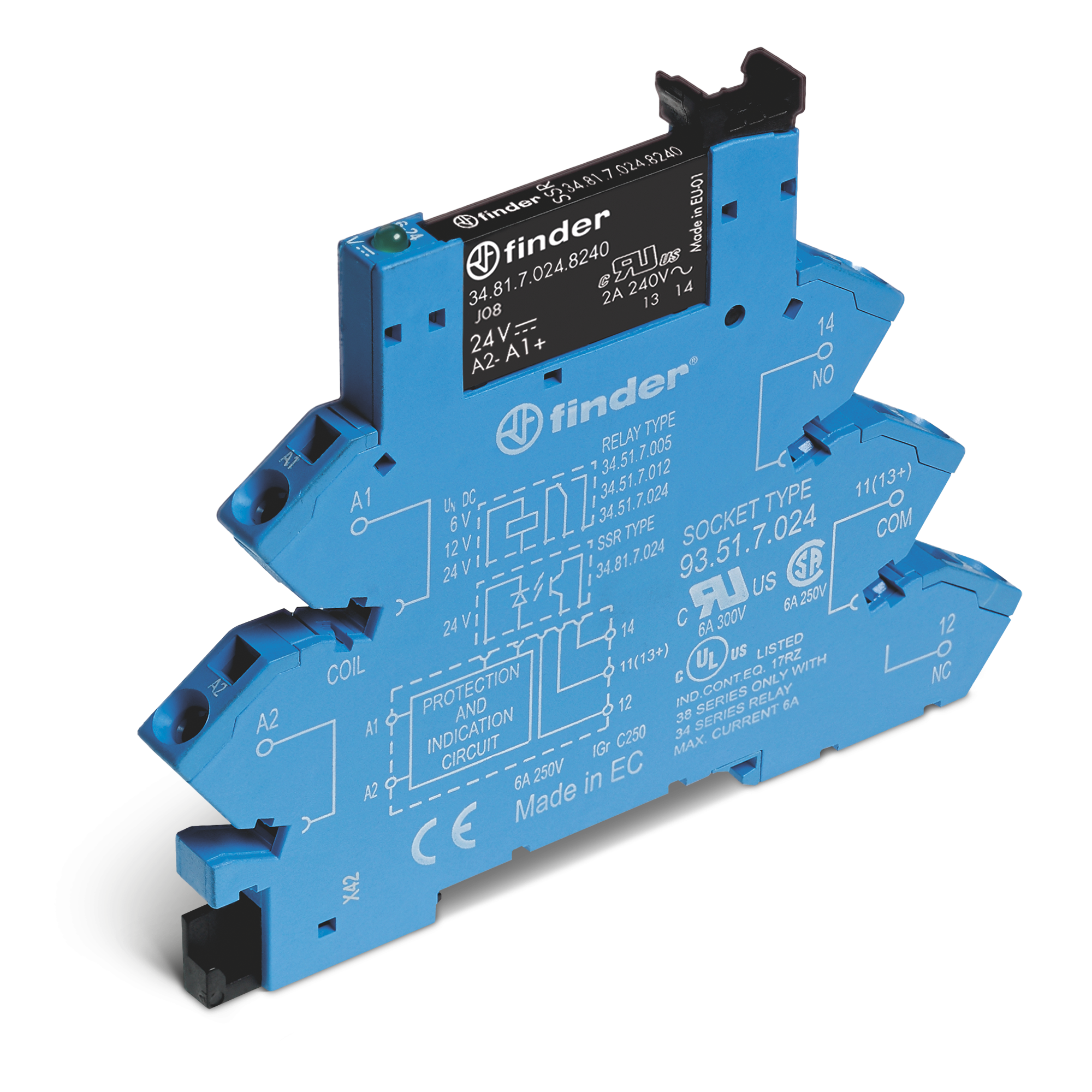

Finder Type 38.91 SSR RELAY MODULE, OUTPUT 6A@24VDC, 24VDC CONTROL, SPRING CLAMP

Description

Relay interface modules, timer SSR 6.2 mm wide, with screwless terminal, 6 A, 6 A – 24 V DC, DC input version, nominal voltage 24 V, operating from 16.8 to 30 V, rated power 0.3 W, consumption 10.5 mA, must drop-out voltage 10 V, ambient temperature from -20 to +55 °C

Available variations:
– SSR interface module with screwless terminals. High switching speed and long electrical life. Single pole SSR output – AC or DC switching, DC or AC/DC input, 35 mm rail mounting (EN 60715). Ideal for PLC and electronic systems.
– SSR interface module with screwless terminals. High switching speed and long electrical life. Single pole SSR output – AC or DC switching, DC or AC/DC input, 35 mm rail mounting (EN 60715). Ideal for PLC and electronic systems.

Available models:

• 38.91-024-DC: SSR RELAY MODULE, OUTPUT 6A@24VDC, 24VDC CONTROL, SPRING CLAMP
• 38.91-24DC/240VAC: SSR RELAY MODULE, OUTPUT 6A@240VAC, 24VDC CONTROL, SPRING CLAMP
