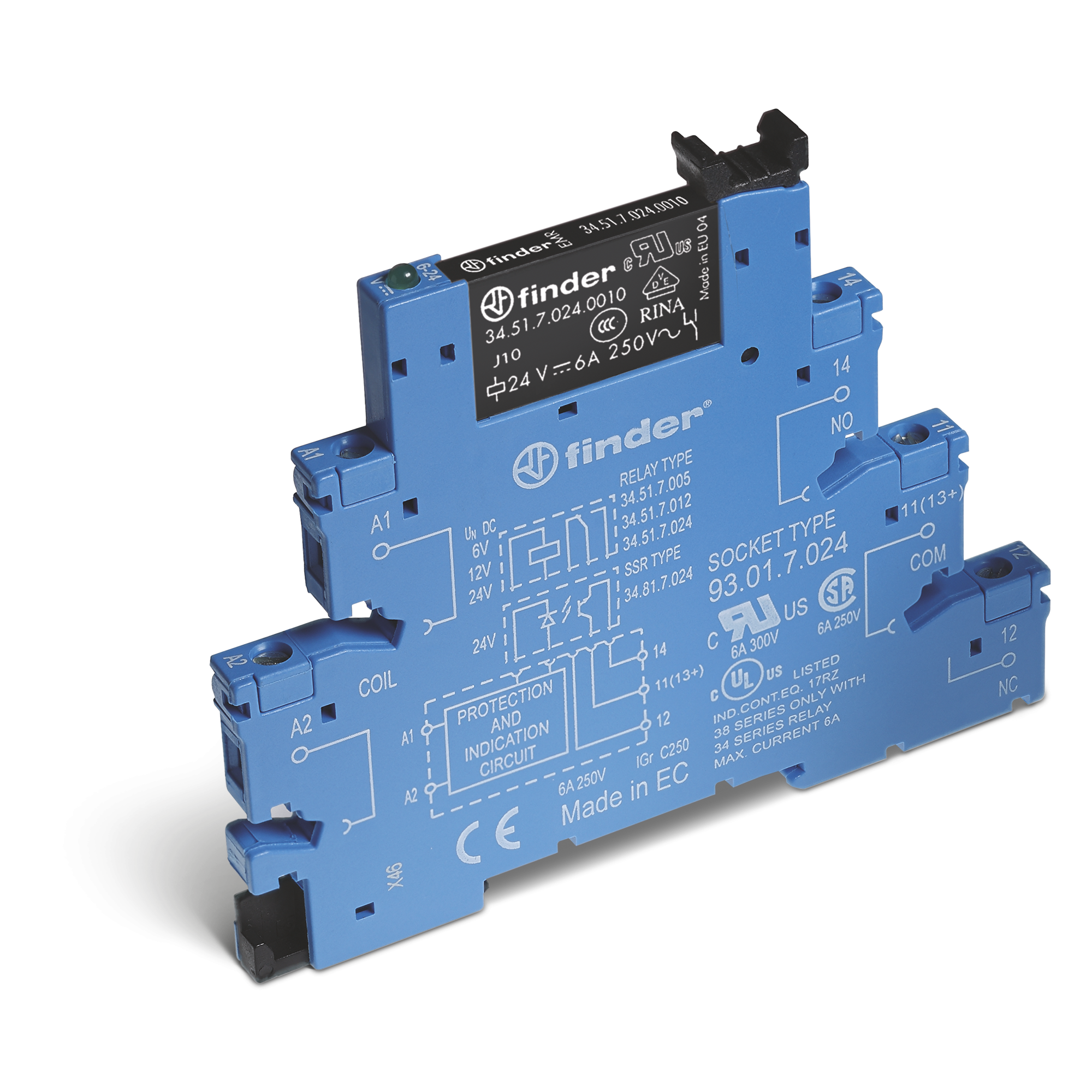

Finder Type 38.51 RELAY MODULE,1CO 6A@250VAC

Description

Relay interface modules, Electromechanical relay, with screw terminal, 1 pole, CO (nPDT), 6 A, AgNi, DC sensitive coil, 12 V, operating from 9.6 to 14.4 V, rated power 0.2 W, consumption 15.2 mA, holding voltage 7.2 V, must drop-out voltage 0.6 V, option: DC, ambient temperature from -40 to +55 °C

Available variations:
– Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.
– Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.
– Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.
– Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.
– Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.
– Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.
– Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.
– Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.
– Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.
– Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.
– Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.
– Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.
– Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.
– Relay Interface Module with single output, width 6,2 mm. Equipped with screw terminals. With AC or DC output circuit and DC input circuit. 35 mm rail (EN 60715) mounting. Designed for interfacing with PLC systems.

Available models:

• 38.51-006-DC: RELAY MODULE,1CO 6A@250VAC, 6VDC (38.51.7.006.0050)
• 38.51-012-DC: RELAY MODULE,1CO 6A@250VAC, 12VDC (38.51.7.012.0050)
• 38.51-024-AC: RELAY MODULE,1CO 6A@250VAC, 24VAC/DC (38.51.0.024.0060)
• 38.51-024-DC: RELAY MODULE,1CO 6A@250VAC, 24VDC (38.51.7.024.0050)
• 38.51-024DC-5050: RELAY MODULE,1CO 6A@250VAC AgNi+Au, 24VDC (38.51.7.024.5050)
• 38.51-048-AC: RELAY MODULE,1CO 6A@250VAC, 48VAC/DC (38.51.0.048.0060)
• 38.51-048-DC: RELAY MODULE,1CO 6A@250VAC, 48VDC (38.51.7.048.0050)
• 38.51-110-AC: RELAY MODULE,1CO 6A@250VAC, 110VAC/DC (38.51.0.125.0060)
• 38.51-110AC-SUPP: RELAY MODULE,1CO 6A@250VAC, 110VAC LEAK SUPPRESSED (38.51.3.125.060)
• 38.51-240-AC: RELAY MODULE,1CO 6A@250VAC, 240VAC (38.51.8.240.0060)
• 38.51-240AC-5060: RELAY MODULE,1CO 6A@250VAC AgNi+Au, 240VAC AU/FLASHED (38.51.0.240.5060)
• 38.51-240AC-SUPP: RELAY MODULE,1CO 6A@250VAC AgNi, 240VAC LEAK SUPPRESSED (38.51.3.240.0060)
