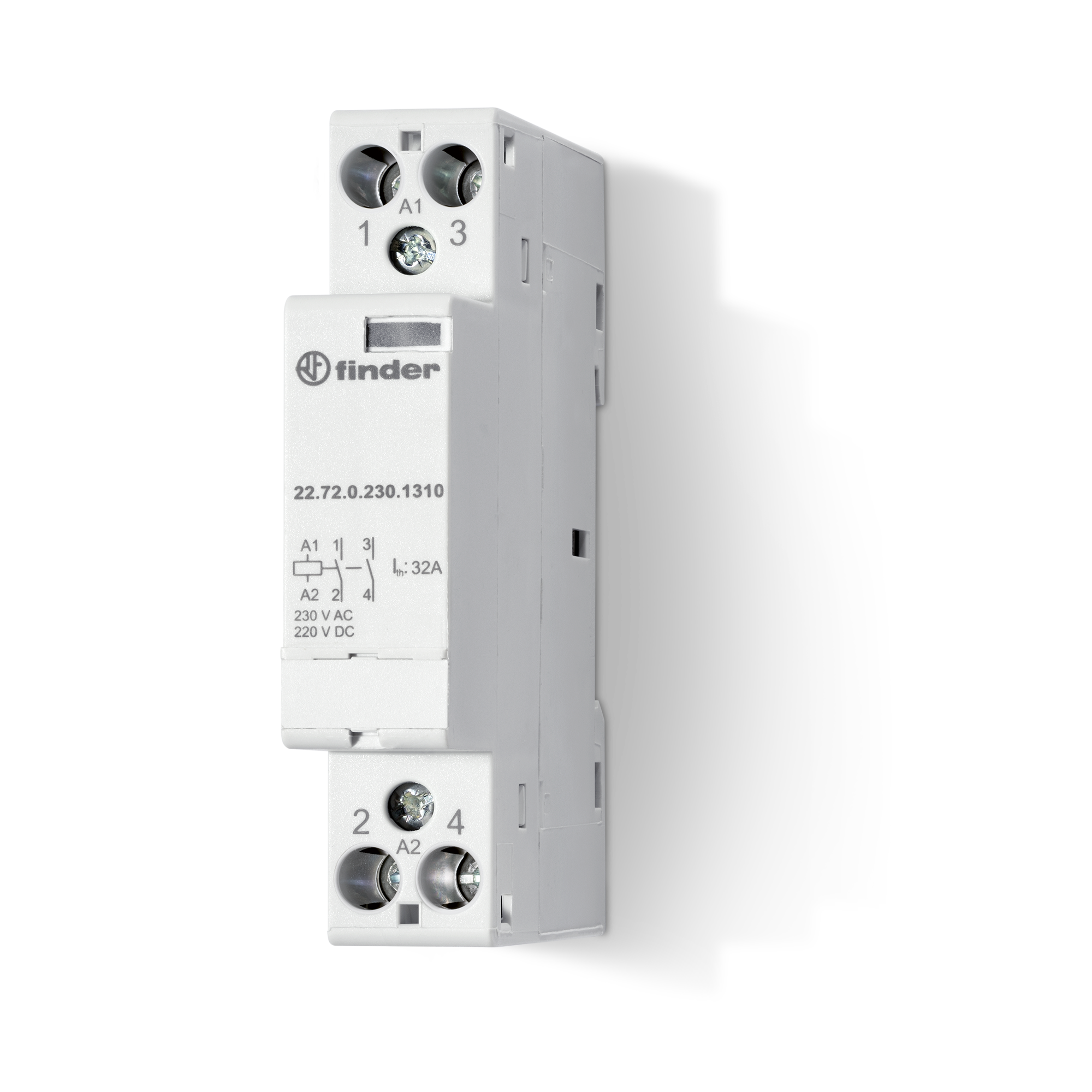

Finder Type 22.72 CONTACTOR 32A, 2NO AgNi

Description

Modular contactor, 32 A, 2 pole, NO, 32 A, AgNi, AC/DC coil, 110 V, operating from 93.5 to 121 V (AC)/(DC), rated power 2.1 VA (AC)/(DC), holding voltage 93.5 V (AC)/(DC), must drop-out voltage 22 V (AC)/(DC), option: Mechanical indicator, ambient temperature from -25 to +70 °C

Available variations:
– 32 A modular contactor – 2 pole. 17.5 mm wide, contact material AgNi. NO and NC contact gap ≥ 3 mm, double break, continuous duty for the coil and contacts, AC/DC silent coil (with varistor protection). Complies with EN 61095: 2009.
– 32 A modular contactor – 2 pole. 17.5 mm wide, contact material AgNi. NO and NC contact gap ≥ 3 mm, double break, continuous duty for the coil and contacts, AC/DC silent coil (with varistor protection). Complies with EN 61095: 2009.
– 32 A modular contactor – 2 pole. 17.5 mm wide, contact material AgNi. NO and NC contact gap ≥ 3 mm, double break, continuous duty for the coil and contacts, AC/DC silent coil (with varistor protection). Complies with EN 61095: 2009.
– 32 A modular contactor – 2 pole. 17.5 mm wide, contact material AgNi. NO and NC contact gap ≥ 3 mm, double break, continuous duty for the coil and contacts, AC/DC silent coil (with varistor protection). Complies with EN 61095: 2009.
– 32 A modular contactor – 2 pole. 17.5 mm wide, contact material AgNi. NO and NC contact gap ≥ 3 mm, double break, continuous duty for the coil and contacts, AC/DC silent coil (with varistor protection). Complies with EN 61095: 2009.

Available models:

• 22.72-024-1310: CONTACTOR 32A, 2NO AgNi, 24VAC/DC COIL
• 22.72-024-1410: CONTACTOR 32A, 2NC AgNi, 24VAC/DC COIL
• 22.72-024-1510: CONTACTOR 32A,1NO+1NC AgNi, 24VAC/DC COIL
