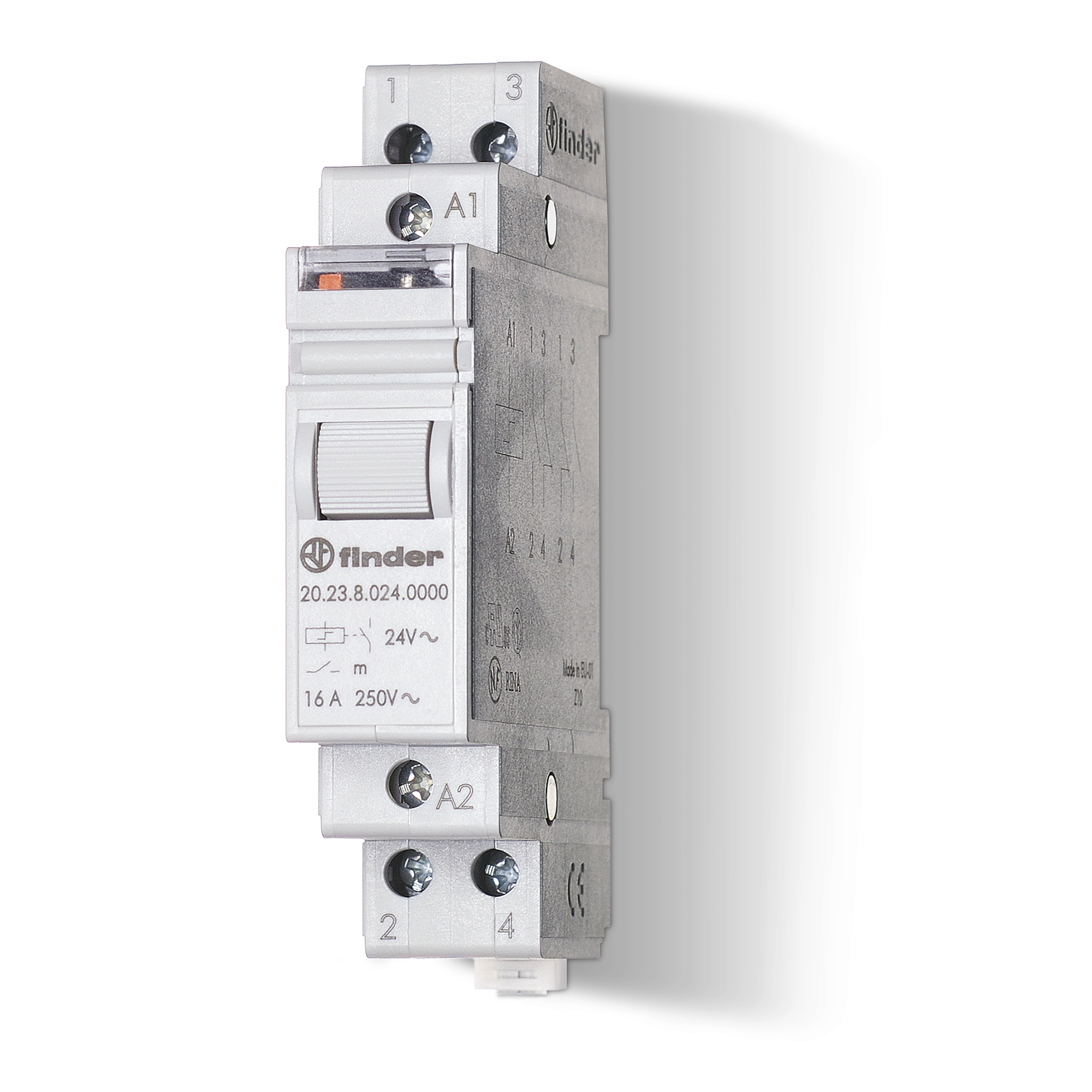

Finder Type 20.23 LATCHING RELAY 1NO+1NC 16A

Description

Modular step relays, 35 mm rail (EN 60715) mount, Double phase switch 1 NC + 1 NO, 16 A, AgNi, DC coil, 24 V, operating from 21.6 to 26.4 V, rated power 5 W, resistance 105 Ω, consumption 230 mA, ambient temperature from -40 to +40 °C

Available variations:
– Modular step relay, 16A, with 1 NO + 1 NC contacts 2-step. For direct mounting on 35mm rail (EN 60715). One module width 17.4 mm, Test button and mechanical indicator, AC or DC coil.
– Modular step relay, 16A, with 1 NO + 1 NC contacts 2-step. For direct mounting on 35mm rail (EN 60715). One module width 17.4 mm, Test button and mechanical indicator, AC or DC coil.
– Modular step relay, 16A, with 1 NO + 1 NC contacts 2-step. For direct mounting on 35mm rail (EN 60715). One module width 17.4 mm, Test button and mechanical indicator, AC or DC coil.
– Modular step relay, 16A, with 1 NO + 1 NC contacts 2-step. For direct mounting on 35mm rail (EN 60715). One module width 17.4 mm, Test button and mechanical indicator, AC or DC coil.
– Modular step relay, 16A, with 1 NO + 1 NC contacts 2-step. For direct mounting on 35mm rail (EN 60715). One module width 17.4 mm, Test button and mechanical indicator, AC or DC coil.

Available models:

• 20.23-012-AC: LATCHING RELAY 1NO+1NC 16A, 12VAC COIL
• 20.23-012-DC: LATCHING RELAY 1NO+1NC 16A, 12VDC COIL
• 20.23-024-AC: LATCHING RELAY 1NO+1NC 16A, 24VAC COIL
• 20.23-024-DC: LATCHING RELAY 1NO+1NC 16A, 24VDC COIL
• 20.23-230-AC: LATCHING RELAY 1NO+1NC 16A, 230VAC COIL
