Time switch, Weekly, NFC programming, 35 mm wide, 1 CO (SPDT), 16 A, AC/DC supply version, nominal voltage 24 V, operating from 10 to 30 V (AC)/(DC), rated power 2.8 VA (AC) / 0.9 W (DC), Option: With power back-up, ambient temperature from -20 to +50 °C
Available variations:
– Digital Time switch allows for “weekly” programming. It can be programmed in “Classic” mode via the joystick, or “Smart” mode via smartphones with NFC communication. 1 CO 16 A output and functions: Switch ON, Switch OFF, Pulse.
– Digital Time switch allows for “weekly” programming. It can be programmed in “Classic” mode via the joystick, or “Smart” mode via smartphones with NFC communication. 1 CO 16 A output and functions: Switch ON, Switch OFF, Pulse.
Available models:
12.61-12/24: TIMESWITCH, DIGITAL, 7 DAY, NFC,1min SET INTERVAL,1CO16A@250VAC,12-24VAC/DC
12.61-230: TIMESWITCH, DIGITAL, 7 DAY,1min SET INTERVAL,1CO16A@250VAC,110-230VAC/DC

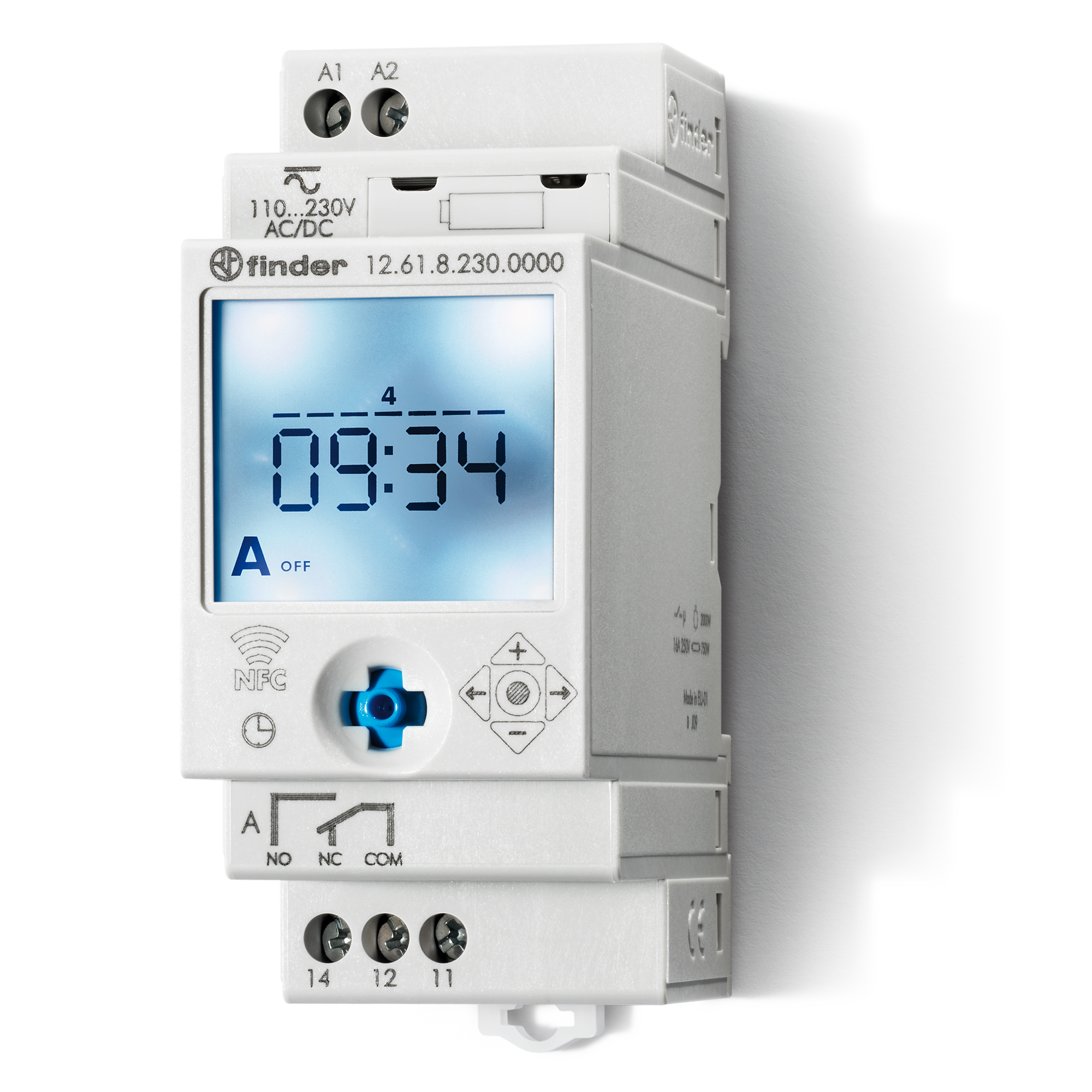

Finder Type 12.61 TIMESWITCH, DIGITAL, 7 DAY, NFC,1min SET INTERVAL,1CO16A@250VAC
Description
Time switch, Weekly, NFC programming, 35 mm wide, 1 CO (SPDT), 16 A, AC/DC supply version, nominal voltage 24 V, operating from 10 to 30 V (AC)/(DC), rated power 2.8 VA (AC) / 0.9 W (DC), Option: With power back-up, ambient temperature from -20 to +50 °C
Available variations:
– Digital Time switch allows for “weekly” programming. It can be programmed in “Classic” mode via the joystick, or “Smart” mode via smartphones with NFC communication. 1 CO 16 A output and functions: Switch ON, Switch OFF, Pulse.
– Digital Time switch allows for “weekly” programming. It can be programmed in “Classic” mode via the joystick, or “Smart” mode via smartphones with NFC communication. 1 CO 16 A output and functions: Switch ON, Switch OFF, Pulse.
Available models:
