ATR124 is a compact PID controller and it is the entry-level model in the Blue Line series, of which it shares all the distinctive features starting with programming via NFC/RFID.
ATR124 is a compact PID controller and it is the entry-level model in the Blue Line series, of which it shares all the distinctive features starting with programming via NFC/RFID.
Analogue input is programmable for a wide range of temperature probes and mA/Volt process signals.
The digital/relay outputs are programmable either as ON/OFF control or as control with PID algorithm, but multiple alarm modes (threshold, band, deviation) are also selectable.
RS485 communication serial and Modbus RTU/ Slave protocol are the network communication options.
The version with extended range 24….230V AC/DC power supply ensures great flexibility in the event of fluctuations in the power grid and optimizes stock management as a single code can cover multiple power supply types.
ATR124 can also be considered as the new generation of the ATR121 series.
SPECIFICATIONS
Power Supply
24..230 VAC/VDC ±15% 50/60 Hz
Power consumption
5 Watt/VA
Display

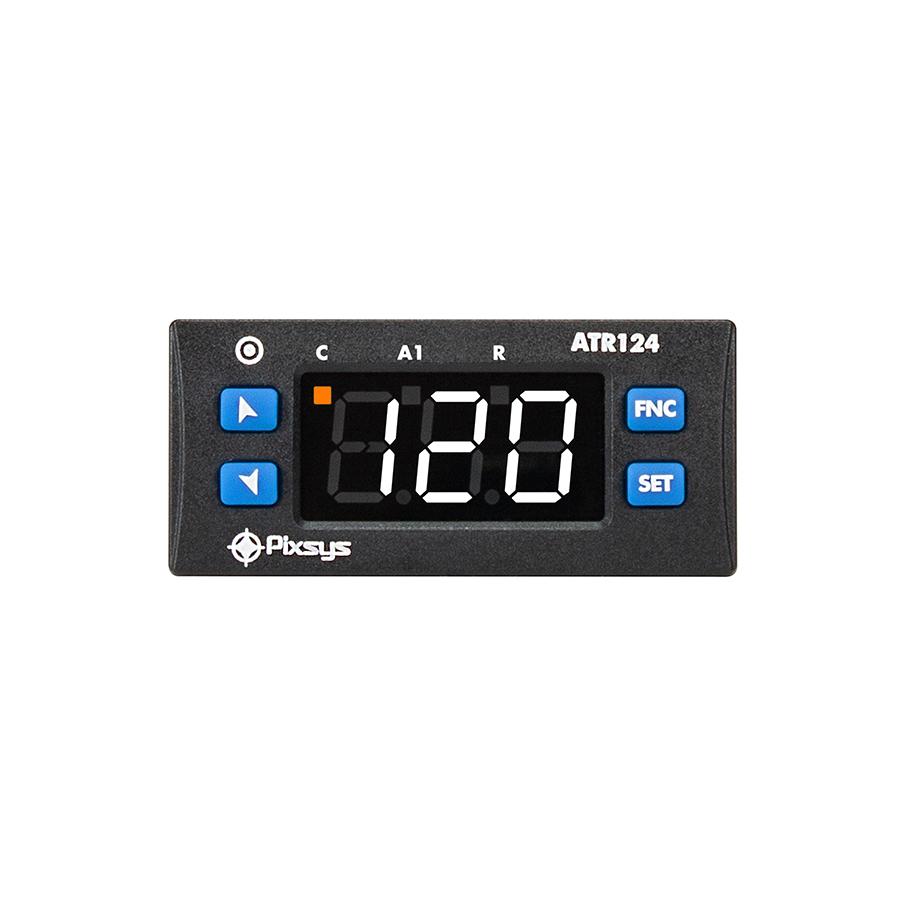

Display 3 digits 0,56" white + signalizing LEDs
Analogue inputs
1x 16bit, programmable for thermocouples K, J, S, R, T (automatic compensation of cold junction 0..50°C, precision @25°C ±0,2% F.S. or ±1 digit), Thermoresistance PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), Process signals 0/4..20mA (40000 points), 0..10V (54000 points), 0..40mV, 0..60mV Potentiometers F.S. 1...150Kohm (50000 points).
Sampling time
Programmable up to 2,1 ms (frequency up to 470 Hz)
Digital outputs
1 x 12 V, 25 mA.
Relay outputs
1 x 5 A - 250 VAC
Serial communication
RS485 (1200..115200 Baud) galvanically isolated
Dimensions
32 x74 x 53mm
Material
Box: PC UL94V2 self-extinguishing, front panel: PC UL94V2
Weight
Approx. 120 g
Sealing
Front panel: IP65, Enclosure+ terminal blocks: IP20

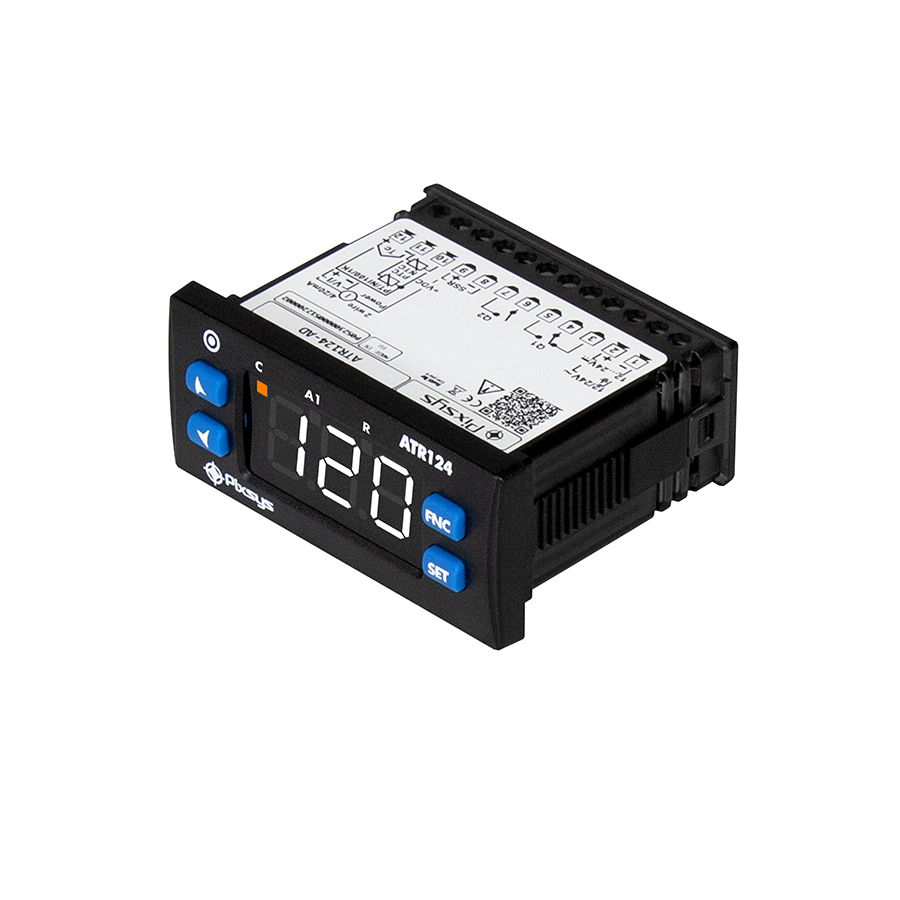

ATR124 PID Controller 32x74mm
ATR124 is a compact PID controller and it is the entry-level model in the Blue Line series, of which it shares all the distinctive features starting with programming via NFC/RFID.
Description
ATR124 is a compact PID controller and it is the entry-level model in the Blue Line series, of which it shares all the distinctive features starting with programming via NFC/RFID.
Analogue input is programmable for a wide range of temperature probes and mA/Volt process signals.
The digital/relay outputs are programmable either as ON/OFF control or as control with PID algorithm, but multiple alarm modes (threshold, band, deviation) are also selectable.
RS485 communication serial and Modbus RTU/ Slave protocol are the network communication options.
The version with extended range 24….230V AC/DC power supply ensures great flexibility in the event of fluctuations in the power grid and optimizes stock management as a single code can cover multiple power supply types.
ATR124 can also be considered as the new generation of the ATR121 series.
