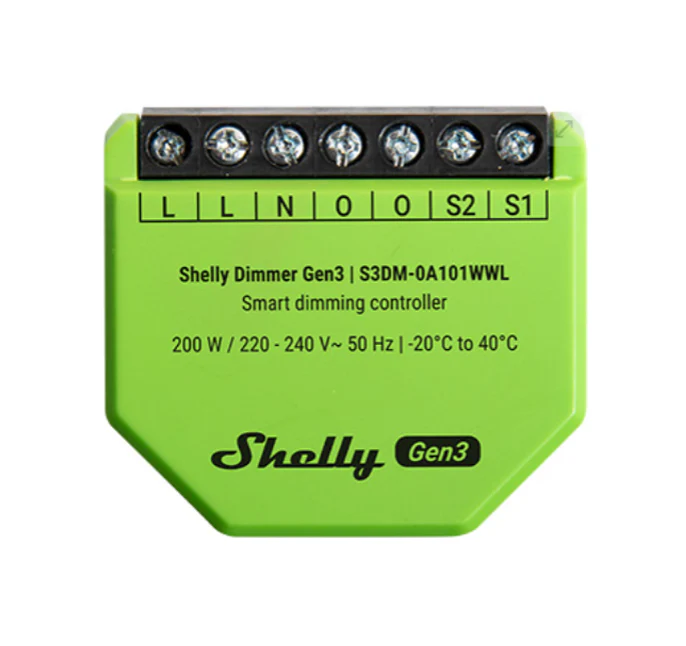

Shelly Dimmer Gen3 Wi-Fi Relay Dimmer 200W

Description

Shelly Wi-Fi Relay Dimmer, 200W, 110-230VAC

Shelly Dimmer Gen3 (the Device) is a single-channel smart dimming controller which allows remote control of dimmable lights and dimming drivers through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The Device can be accessed, controlled, and monitored remotely from any place where the User has internet connectivity, as long as it is connected to the Internet. Shelly Dimmer Gen3 has an embedded Web Interface which can be used to monitor and control the Device, as well as adjust its settings. The Device can be used as trailing edge dimmer switch, with or without neutral wire.

• No need for neutral: The Device can be used without neutral wire
• Bluetooth: The Device complies the Bluetooth standard and can connect with other Bluetooth devices to exchange data in short range.
• BLE Gateway: Facilitates communication between BLE and Wi-Fi-enabled devices.
• Wi-Fi: The Device can connect to a wireless network.
• Advanced Schedules: Supports detailed schedules and routines throughout the year with a broad range of time adjustments from seconds to months, including setting of brightness, transition duration, and flip value of the dimming signal.
• Auto on/off timers: Enables auto on/off timer setting.
• Local actions: Allows creating automation scenarios within the local Wi-Fi network, including setting of brightness, transition duration, and flip value of the dimming signal.
• Compatibility: Highly compatible with 3rd Party home automation systems.
• Safety: Over current/voltage/power protections. When the device is used without neutral wire, those protections might not work properly.
• Power measurement:
  • Information about voltage (V), current (A) and consumption (W) is displayed when the device is used with neutral.
  • Power consumption cannot be measured when the device is used without neutral.
• Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control on the output.
• Switch/Button input mode: Allows flexible input control through switches and/or buttons
  • One button dimming control
  • Dual button dimming control
• Button fade rate: Controls how quickly the output brightness changes while holding the button(s). Default is 3x.
• Button presets: State to be applied on double-push (double-click) event. Default value is 100%
• Automatic dimming calibration: Provides smooth dimming throughout the entire range. Must be performed on a new device, after a factory reset and after every change of the load.

Part number: SHELLY-DIMMER-G3
