Type 12.C1.8.230.B000 digital weekly Astro time switch with Bluetooth. 1 module, without display and internal battery, one week power reserve. Bluetooth technology, external push-button. Synchronization via external wireless GPS antenna (Type 012.BG.8.230).
Other technical features:
• Programming via Smartphone – Android and Apple – with Bluetooth
• 1 NO (SPDT-NO) 10 A
• Summer/Winter Availalable for Europe, USA, Australia and Brazil, or specific coordinates
• Lock with a 4-digit PIN
• Supercapacitor with one week power reserve
• The functions that can be set from the Finder Toolbox app:
Time, Astro, night mode management, Pulse, Astro Pulse
• Protective separation between supply and contacts
• 17.5 mm wide
• 35 mm rail (EN 60715) mount
Product Variation: 12.C1-230-AC
PRODUCT CODE
12.C1-230-AC
Brand
Finder
NFC Programming
NFC Programming via smartphone and bluetooth for Android and IOS
FINDER TIMESWITCH, DIGITAL WEEKLY ASTRO WITH BLUETOOTH PROGRAMMING, SPST 10A, 110-230VAC
Description
Type 12.C1.8.230.B000 digital weekly Astro time switch with Bluetooth. 1 module, without display and internal battery, one week power reserve. Bluetooth technology, external push-button. Synchronization via external wireless GPS antenna (Type 012.BG.8.230).
Other technical features:
• Programming via Smartphone – Android and Apple – with Bluetooth
• 1 NO (SPDT-NO) 10 A
• Summer/Winter Availalable for Europe, USA, Australia and Brazil, or specific coordinates
• Lock with a 4-digit PIN
• Supercapacitor with one week power reserve
• The functions that can be set from the Finder Toolbox app:
Time, Astro, night mode management, Pulse, Astro Pulse
• Protective separation between supply and contacts
• 17.5 mm wide
• 35 mm rail (EN 60715) mount
Product Variation: 12.C1-230-AC

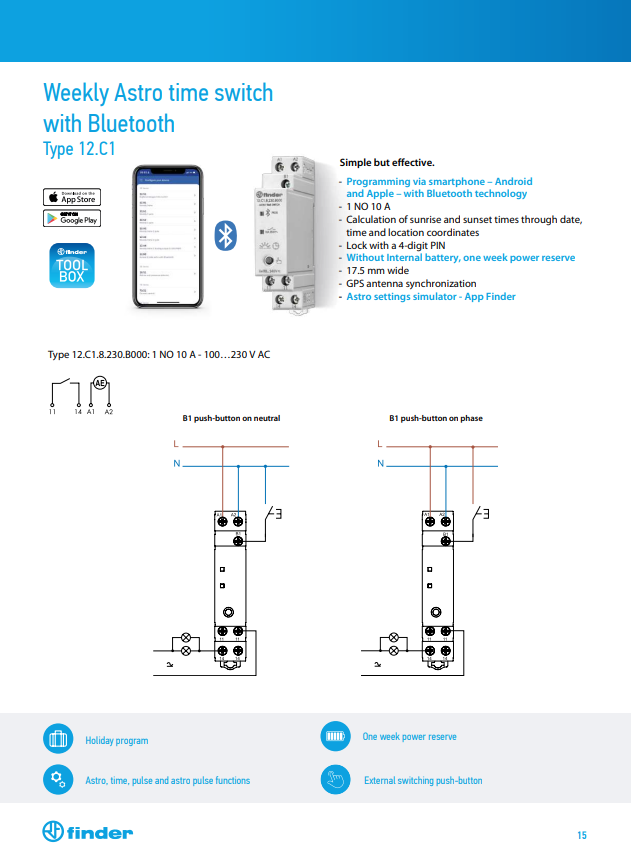

12.C1 Datasheet
Download12 Series Datasheet
12.C1 Report
DownloadPDF describing functionality and applications
12,C1 Video
DownloadVideo
Certificate of Conformity
DownloadEU Declaration of Conformity
12.C1 Programming
DownloadProgramming Instructions for 12.C1 Time Switch
