Description
Direct-connect DIN rail energy and power meter — no external CTs needed, simply wire the load conductors directly through the meter for a simpler, lower-cost installation. Class 1B accuracy with Modbus RS485 output for BMS, SCADA, or energy monitoring integration. The 3-phase model supports import/export metering, making it ideal for solar installations where you need to track both grid consumption and solar feed-in. Commonly used for sub-metering, tenant metering, solar monitoring, and circuit-level energy tracking.
Note: Direct connect means the load current flows through the meter itself — no separate CTs are required, but installation must be done by a qualified electrician. Maximum current ratings are 45A (1-phase) or 100A (1-phase and 3-phase). For higher currents, use a CT-connected meter such as the RI3-01 or Integra 1222 with external CTs.
Available models:

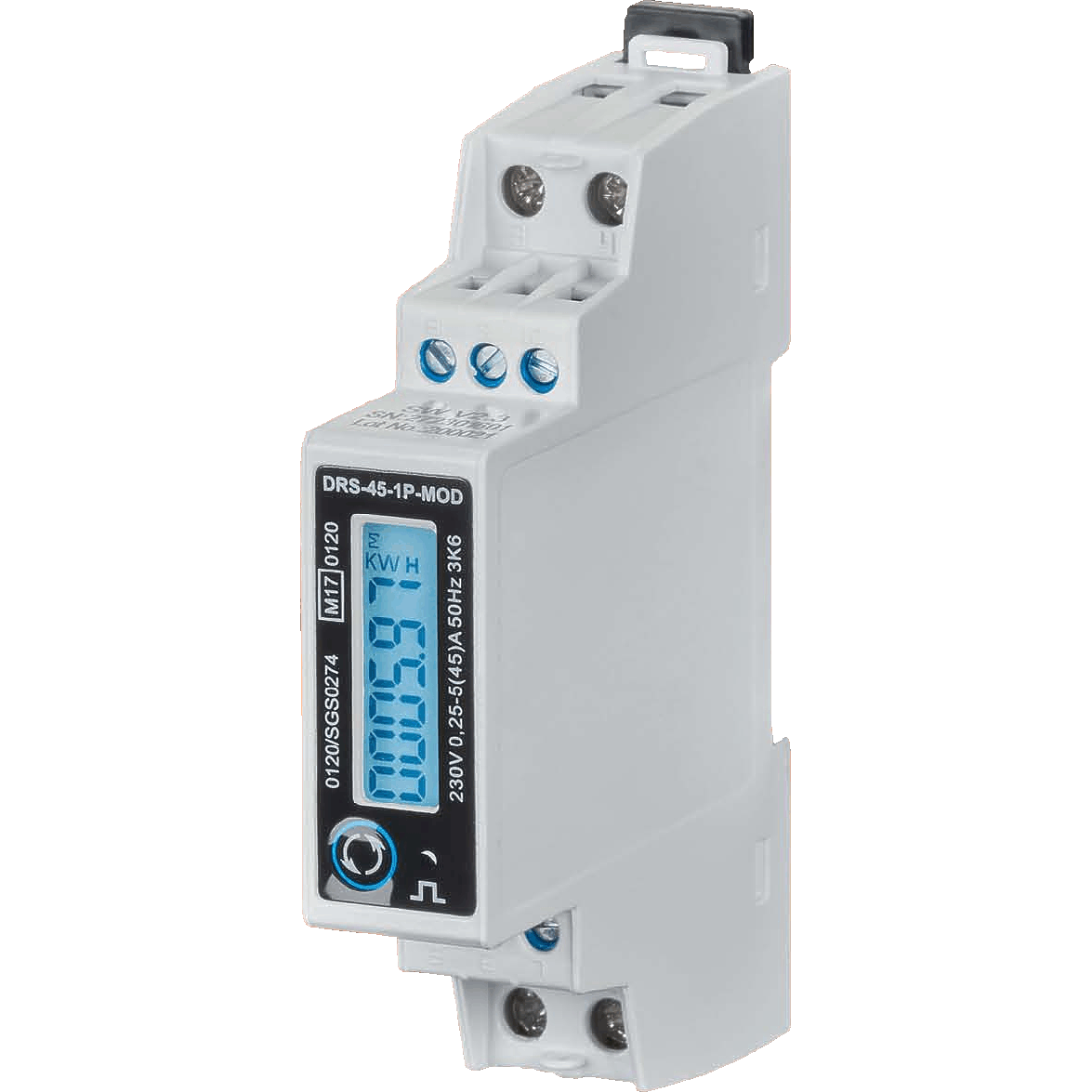

– DRS-45-1P-MOD-01: 45A direct connect, 1-phase, Modbus + pulse output

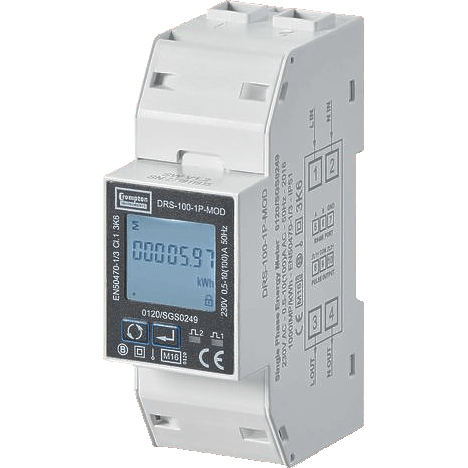

– DRS-100-1P-MOD-01: 100A direct connect, 1-phase, Modbus + 2x pulse output

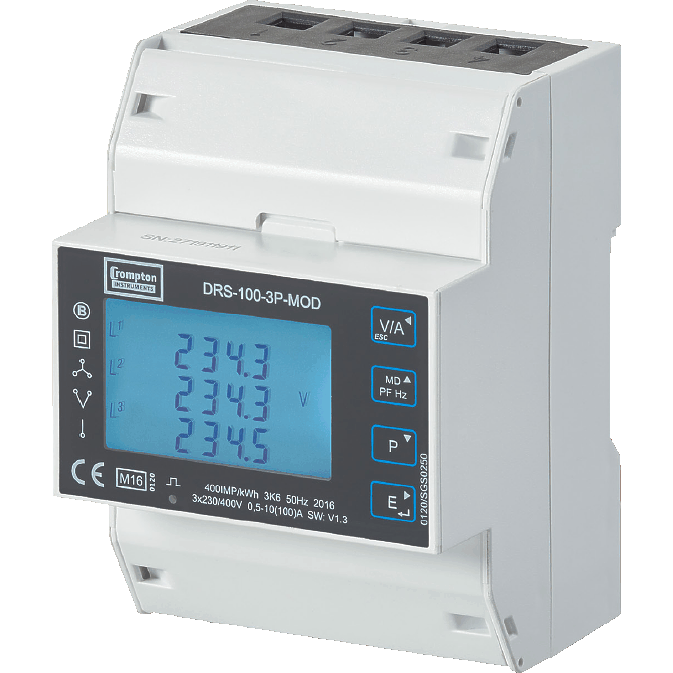

– DRS-100-3P-MOD-01: 100A direct connect, 3-phase, Modbus, import/export
Related products:
– RI3-01: DIN rail power meter with 5A CT input (for higher current circuits)
– Integra 1222: Panel-mounted power meter with 5A CT input
Crompton DRS DIN Rail Energy Meter – Direct Connect, Modbus
Description
Direct-connect DIN rail energy and power meter — no external CTs needed, simply wire the load conductors directly through the meter for a simpler, lower-cost installation. Class 1B accuracy with Modbus RS485 output for BMS, SCADA, or energy monitoring integration. The 3-phase model supports import/export metering, making it ideal for solar installations where you need to track both grid consumption and solar feed-in. Commonly used for sub-metering, tenant metering, solar monitoring, and circuit-level energy tracking.
Note: Direct connect means the load current flows through the meter itself — no separate CTs are required, but installation must be done by a qualified electrician. Maximum current ratings are 45A (1-phase) or 100A (1-phase and 3-phase). For higher currents, use a CT-connected meter such as the RI3-01 or Integra 1222 with external CTs.
Available models:
– DRS-45-1P-MOD-01: 45A direct connect, 1-phase, Modbus + pulse output
– DRS-100-1P-MOD-01: 100A direct connect, 1-phase, Modbus + 2x pulse output
– DRS-100-3P-MOD-01: 100A direct connect, 3-phase, Modbus, import/export
Related products:
– RI3-01: DIN rail power meter with 5A CT input (for higher current circuits)
– Integra 1222: Panel-mounted power meter with 5A CT input
DRS-45-1P-MOD-01 Datasheet
DownloadDRS-45-1P-MOD-01 Comms Guide
DownloadDRS-45-1P-MOD-01 Setup Guide
DownloadDRS-100-1P-MOD-01 Datasheet
DownloadDRS-100-1P-MOD-01 Comms Guide
DownloadDRS-100-1P-MOD-01 Setup Guide
DownloadDRS-100-3P-MOD-01 Datasheet
DownloadDRS-100-3P-MOD-01 Setup Guide
DownloadDRS-100-3P-MOD-01 Comms Guide
Download
