DATAKOM DKG-170 Series Automatic Transfer Switch Controller – 3-Phase

Description

The DATAKOM DKG-170 series are microprocessor-controlled automatic transfer switch controllers that monitor 3-phase mains voltages, send remote start commands to the generating set, and control changeover of generator and mains contactors. If any phase voltage goes outside set limits, the unit initiates a transfer cycle. A test mode allows the genset to be tested without a mains failure. Front panel indicators show mains and generator availability and contactor positions.

Available models:
– DKG-171: Automatic transfer switch controller, panel mount 72x72mm
– DKG-173: Automatic transfer switch controller, DIN rail mount, no DC supply required

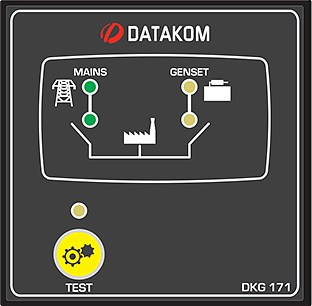

The DKG-171 is a low cost, microprocessor controlled auto transfer switch.
Features:

• Panel mounted 72x72mm
• User adjustable low voltage limit
• Remote start output
• Test button
• Supply 12V or 24V dc

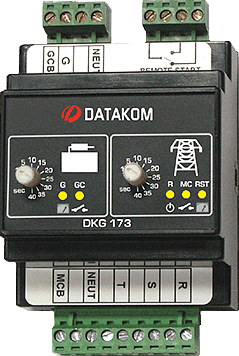

The DKG-173 is a DIN Rail mounted auto transfer switch controller.
The unit monitors 3-phase mains voltages, sends remote start command to the generating set & performs changeover of both generator & mains contactors.
Features:

• DIN Rail mounted
• No DC supply required
• Isolated mains and genset inputs
• 10A/28VDC/250VAC remote start output
