DATAKOM BC-M Series Hi-Efficiency Battery Charger – Switch Mode, 5A Output

Description

The DATAKOM BC-M series are high-efficiency switch mode battery chargers designed for permanent connection to generator set starter batteries. With efficiency up to 90%, these chargers maintain batteries fully charged without overcharging or gassing. The wide input voltage range of 170-300VAC suits unstable mains supplies commonly found at generator installations. Output is current-limited at 5A with automatic switchover from constant current to constant voltage (float) charge mode.

Available models:

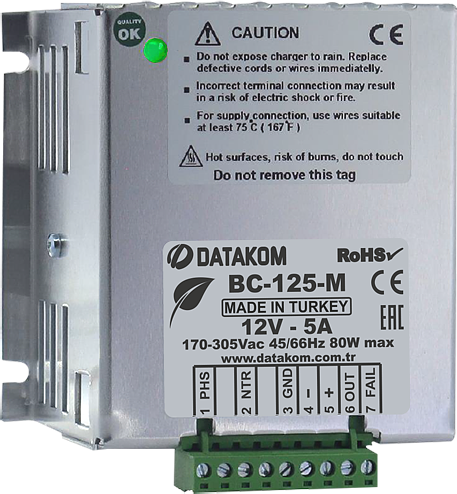

– BC125-M: Hi-efficiency switch mode battery charger, 12V 5A output

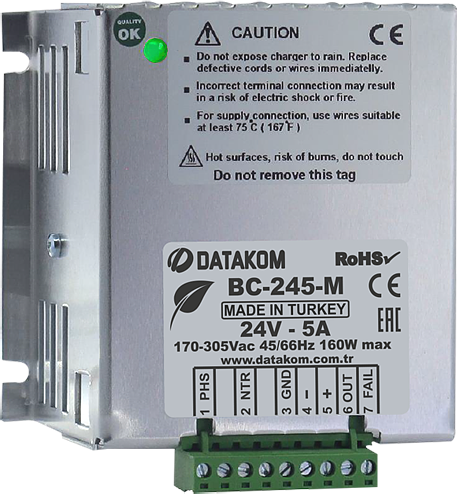

– BC245-M: Hi-efficiency switch mode battery charger, 24V 5A output

The BC-125-M is a high effiency two stage lead acid battery charger.
Output 12V 5A, supply 107-305Vac.
These chargers a designed to be very robust having overload, short circuit, high temperature & reverse battery protection.
Features:

• High efficiency, over 90%
• Wide operating supply range, 170-305Vac
• LED status indicator
• Low power consumption at no load
• Analog output for current measurement
• Operating temperature -30°C to +80°C
• Small size, 106mm(W) x 115mm(H) x 57mm(D)

The BC-245-M is a high effiency two stage lead acid battery charger.
Output 24V 5A, supply 107-305Vac.
These chargers a designed to be very robust having overload, short circuit, high temperature & reverse battery protection.
Features:

• High efficiency, over 90%
• Wide operating supply range, 170-305Vac
• LED status indicator
• Low power consumption at no load
• Analog output for current measurement
• Operating temperature -30°C to +80°C
• Small size, 106mm(W) x 115mm(H) x 57mm(D)
